Automated Cluster Creation

Terraform is an Infrastructure-as-Code (IaC) tool used to provision and manage cloud infrastructure, such as servers, networks, and storage, across platforms like AWS. It defines resources in declarative .tf files, allowing you to create or destroy environments consistently and repeatably.

Ansible complements Terraform by handling configuration management and automation. After Terraform builds the infrastructure (e.g., EC2 instances on AWS). Ansible installs software, sets up services, and applies system configurations using YAML-based playbooks.

HashiCorp Cloud Platform (HCP) provides managed services and state storage for Terraform and other HashiCorp tools, ensuring collaboration, version control, and secure remote state management.

Terraform uses HCP to plan and provision resources on AWS; Ansible then configures those instances and deploys applications- forming an automated, end-to-end workflow for building, managing, and scaling cloud or HPC environments.

Before you begin, ensure you have the following prerequisites are installed on your local system:

• AWS CLI

• Terraform

• Ansible

To check if Terraform is installed, run

terraform version

To check if Ansible is installed, run

ansible --version

To check if AWS CLI is installed, run

aws --version

If any of these tools are not installed, please refer to their respective installation guides:

• AWS CLI: https://docs.aws.amazon.com/cli/latest/userguide/getting-started-install.html

• Terraform: https://developer.hashicorp.com/terraform/tutorials/aws-get-started/install-cli

• Ansible: https://docs.ansible.com/projects/ansible/latest/installation_guide/intro_installation.html

AWS IAM User

In AWS, first create an IAM user and then create an access key id and access key for the IAM user. Then install the AWS CLI on your local system. Once installed, set up the AWS CLI credentials and configuration for your IAM user.

aws configure --profile terraform-user

AWS Access Key ID [None]: A*********************T
AWS Secret Access Key [None]: 7************************4
Default region name [None]: us-east-1
Default output format [None]: yaml

terraform-user is the name of my IAM user. A*********************T is the access key ID I created when setting up a key from my IAM user terraform-user. 7************************4 is the secret key of my IAM user terraform-user.

To check if the set up worked run the following commands:

aws configure list

A smaple output will look similar to this:

Name                    Value             Type    Location
----                    -----             ----    --------
profile                <not set>             None    None
access_key     ****************Z3GD shared-credentials-file
secret_key     ****************RcVO shared-credentials-file
region           ap-northeast-1      config-file    ~/.aws/config

aws sts get-caller-identity

A smaple output will look similar to this:

{
    "UserId": "AID****************4C",
    "Account": "52***************0",
    "Arn": "arn:aws:iam::52********350:user/terraform-user"
}

Rocky Linux Subscription

We are using Rocky Linux 9.6 as the OS for all the instances. This is usually requires a seperate sunscription in AWS. You can do this by going to the AWS marketplace and subscribing to the Rocky Linux 9.6 image.

HCP Account and Terraform

First, create a HashiCorp Cloud Platform (HCP) account. During the sign-up process, you can simplify authentication by using GitHub Single Sign-On (SSO) instead of creating a separate username and password.

Once the account is created and you are logged in to the HCP console, generate an HCP user token. This token acts as a secure credential that allows command-line tools (such as the HCP CLI or Terraform) running on your local system to authenticate with your HCP account. We will store and use this token later to log in from the local machine and authorize API operations against HCP.

Next, create an Organisation. within your HCP account. An organization serves as a top-level logical container for managing access control, billing, and shared resources. This organization identifier will be referenced later in one of the Terraform configuration files, so it is important to choose and remember a consistent name. For now, we will refer to this organization as HpcOrg.

Within the HpcOrg organization, create a project named HpcProj. Projects allow you to group related infrastructure resources and apply scoped permissions, making it easier to manage environments such as development, staging, or production.

Finally, inside the HpcProj project, create a workspace called HpcWrkspc. This workspace will be used to manage Terraform runs and state, and it represents the execution context where Terraform configurations are applied and tracked.

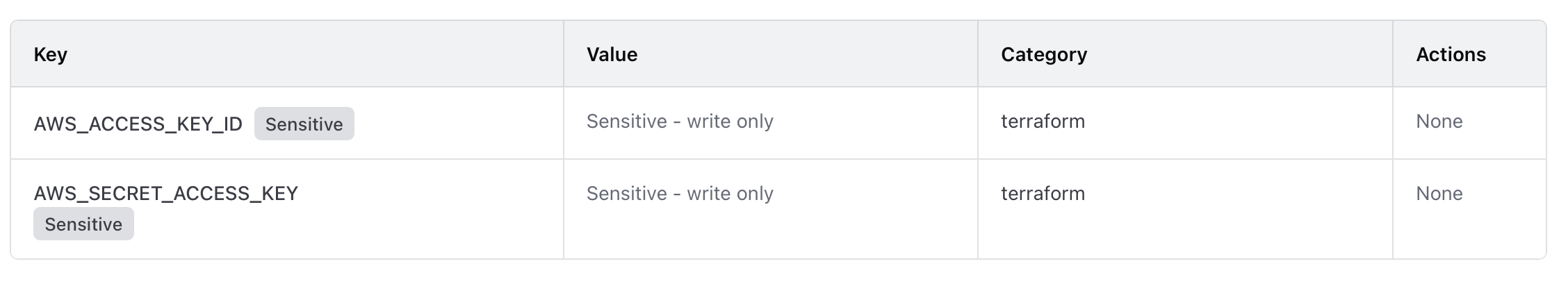

Now that the HCP account, organization, project, and workspace are set up, we need to configure the AWS IAM user credentials within the HCP workspace. To do this, create a variable set called aws_credentials in the organization HpcOrg, with the following values.

• AWS_ACCESS_KEY_ID holds the key ID of your AWS IAM user.

• AWS_SECRET_ACCESS_KEY holds the secret access key of your IAM user.

This allows us to connect the HCP cloud account with the IAM user account. The advantage of the variable set is that it can be reused on multiple projects and workspaces. As you maybe using the same IAM user for multiple projects, it is a good idea to have the IAM user credentials as a variable set.

In addition to the variable set, create variables specific to this workspace. In this case, our workspace-specific variables are

• controller_ami : AMI ID used for the controller node. This should point to the Rocky Linux 9.6 OS image.

• login_ami : AMI ID used for the login node.Typically the same Rocky Linux 9.6 OS image, unless a lighter or hardened image is required.

• compute_ami : AMI ID used for the compute nodes. This may differ from the controller/login AMI (for example, a GPU-enabled or CUDA-preinstalled image).

• storage_ami : AMI ID used for the storage nodes. This can be customized to include filesystem or storage-specific tooling if required.

• instance_type: Which give the compute type we are using, in this case t3.2xlarge.

In this example, we are using the AMI ami-0f2425d4cce4e97dd, which is the Rocky Linux 9.6 (Blue Onyx) for all node types.

The AMI and instance type we use here may not be available for the free tier of the AWS account. We also tested Ubuntu and Red Hat AMI, but it was difficult installing some packages in both. We also tried the free tier of instance type, but it was running into memory issues when building and installing the required packages.

The adavantage of having the AMI and instace type as the variable is that you can change both without changing your Terraform files. In fact, it is a good idea to have all the AWS specific values in the Terraform file as a variable in the workspace.

Now that the HCP account is set up you can log in to the HCP from the CLI of your local system.

terraform login

This will prompt you for the HCP token details and you should enter that.

Now create SSH key we can use within all the AWS instance

ssh-keygen -t rsa -b 4096 -f ~/.ssh/terraform-user -C "terraform-user"

When we run the Terraform files, the public key terraform-user.pub will automatically be added to all the AWS instances. This will help us log in to the instances if we need to troubleshoot any problems.

Now that the AWS IAM user, the HCP cloud user, and the SSH key are set up, clone the repo

git clone https://github.com/josephjohnjj/hpc_on_aws.git
cd pbs-cluster

Now copy the SSH key terraform-user.pub to the directory keys/ within the directory pbs-cluster

cp ~/.ssh/terraform-user.pub keys/terraform-user.pub

In the directory pbs-cluster, there will be a file named main.tf, with the Terraform block.

cloud {
    organization = " "
    workspaces {
            name = " "
    }
}

In this block, set the following values

organization = "HpcOrg"
name = "HpcWrkspc"

and then run the following Terraform commands

terraform init
terraform apply

After some prompt, where you have to type yes, this will provision your instance in your AWS account. You can check this by logging in to your AWS account and checking the EC2 dashboard. After verifying that the instances are running, you can run the Ansible files to set up the various components of the HPC setup.

Ansible

Now that all the required instances are provisioned in AWS, run the file generate_host.sh in pbs-cluster/ansible.

cd ansible
sh generate_host.sh

This will generate an Ansible inventory hosts.ini file, which looks similar to this.

[control]
node1 ansible_host=44.201.254.248 ansible_user=rocky ansible_ssh_private_key_file=/home/joseph/.ssh/terraform-user

[login]
node2 ansible_host=3.88.173.215 ansible_user=rocky ansible_ssh_private_key_file=/home/joseph/.ssh/terraform-user

[compute]
node3 ansible_host=44.202.113.17 ansible_user=rocky ansible_ssh_private_key_file=/home/joseph/.ssh/terraform-user
node4 ansible_host=44.202.11.184 ansible_user=rocky ansible_ssh_private_key_file=/home/joseph/.ssh/terraform-user
node5 ansible_host=18.205.106.239 ansible_user=rocky ansible_ssh_private_key_file=/home/joseph/.ssh/terraform-user

[storage]
node6 ansible_host=3.83.203.67 ansible_user=rocky ansible_ssh_private_key_file=/home/joseph/.ssh/terraform-user
node7 ansible_host=3.84.253.146 ansible_user=rocky ansible_ssh_private_key_file=/home/joseph/.ssh/terraform-user

[all:children]
control
login
compute
storage

An Ansible inventory file lists all the hosts that Ansible manages and organizes them into groups. Each host entry can include connection details like IP address, SSH user, and private key. Inventory files allow you to target specific groups or the entire infrastructure when running playbooks or commands, making automation across multiple systems structured and efficient.

This inventory file defines a cluster of nodes grouped by role: control, login, compute, and storage. Each node entry specifies its IP address, SSH user (rocky), and the private key (terraform-user) for authentication. The [all:children] section creates a parent group that includes all subgroups, allowing Ansible to target the entire cluster or individual groups for playbooks and commands. Essentially, it provides Ansible with a structured map of the cluster and connection details for automated management.

I have organised the Ansible play into different directories, and you can install the different components by running the following commands from pbs-cluster/ansible:

ansible-playbook -i host.ini 0_packages/1_update_packages.yml
ansible-playbook -i host.ini 1_setup_ssh/0_master.yml
ansible-playbook -i host.ini 2_setup_beegfs/0_master.yml
ansible-playbook -i host.ini 3_setup_pbs/0_master.yml
ansible-playbook -i host.ini 4_ldap_server/0_master.yml
ansible-playbook -i host.ini 5_prometheus_grafana/0_master.yml

or install everything in a single go using

ansible-playbook -i host.ini deploy.yml

Now you can login to the Login node as a the testuser1, with password testuser and try submitting a simple PBS job to check if everything is working as expected.

Explanation

The IP address of the login node can be found in the generated file host.ini

ssh testuser1@<login nodde ip>

The following section will explain what is happening with the individual components in the HPC cluster
